ACE-X PRO S4 Dual Suspension Electric Bike
ACE-X PRO S4 Dual Suspension Electric Bike
Hold on tight, because the All NEW 2025, Series 4 ACE-X PRO Dual Suspension Electric Bike is here to blow your mind! Inspired by our legendary ACE Model Range, the ACE-X PRO just took a quantum leap forward!
Say goodbye to the ordinary, because the ACE-X PRO leaves its predecessor, the ACE-X in the dust. We've supercharged it with a mind-boggling 1,000W Rear Hub Bafang Motor that delivers mind-blowing ride performance like never before seen on an Ace Bike! And for those seeking next-level comfort, we've added our signature DNM Rear Suspension for an ultra-smooth ride.
Designed in conjunction with our in-house family team and continuously sought after since its debut in 2019, the ACE Bike continues to create waves nationwide.
Loaded with premium features and celebrated year after year as Australia's favourite fat tyre bike the ACE Pro range boasts a vibrant colour options and a cutting-edge battery system with our Latest GEN3 Aluminium Battery which encompasses 21700 cells that are 30% larger than our competitors, paired with our Smart BMS for optimal performance and safety.
What's New for Series 4?
- All New 52V 25AH Battery with Premium 21700 Samsung Cells
- Improved 4 Piston Tektro Hydraulic Brakes with 203mm Rotors
- Enhanced Adjustable Front Fork with CNC Bar Clamps

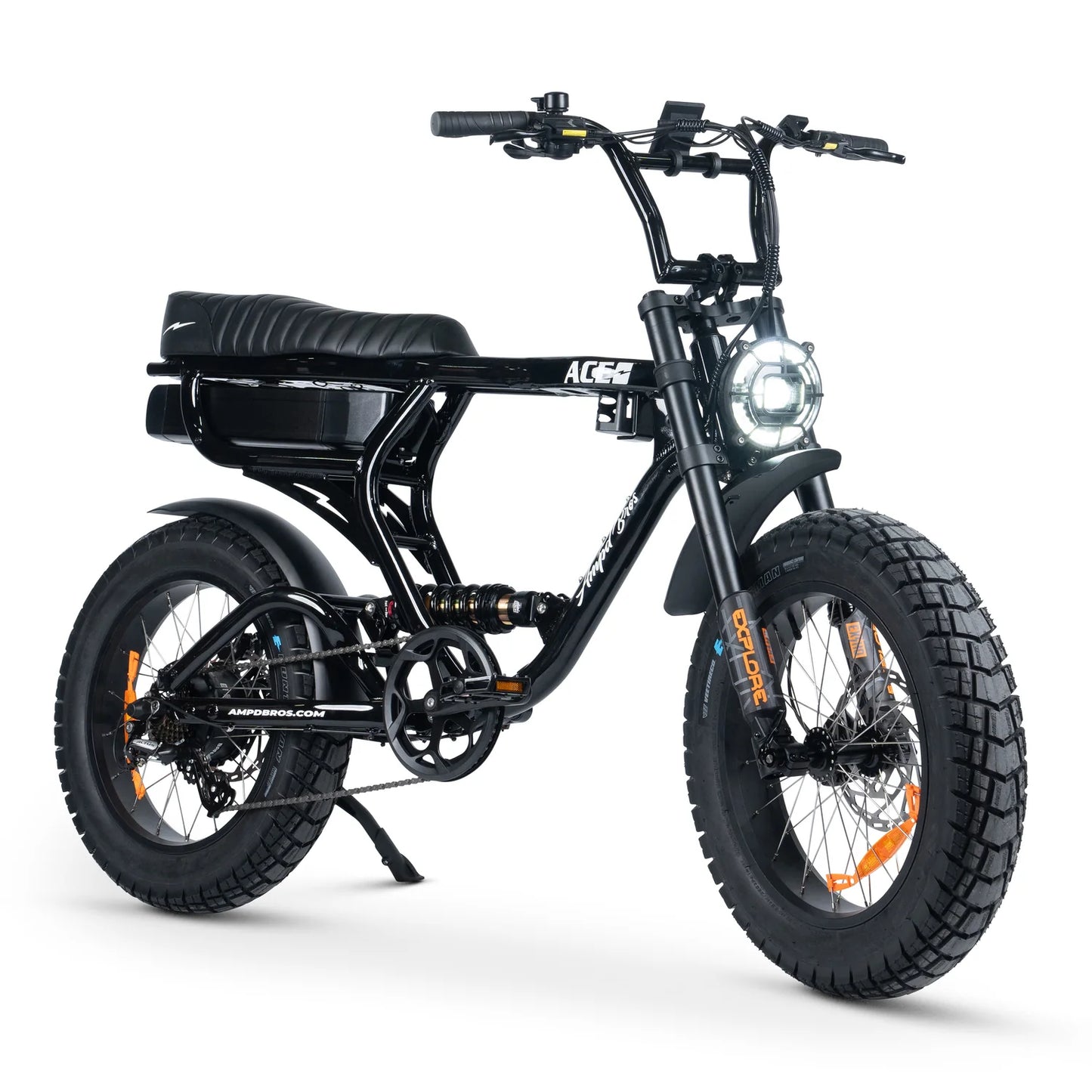

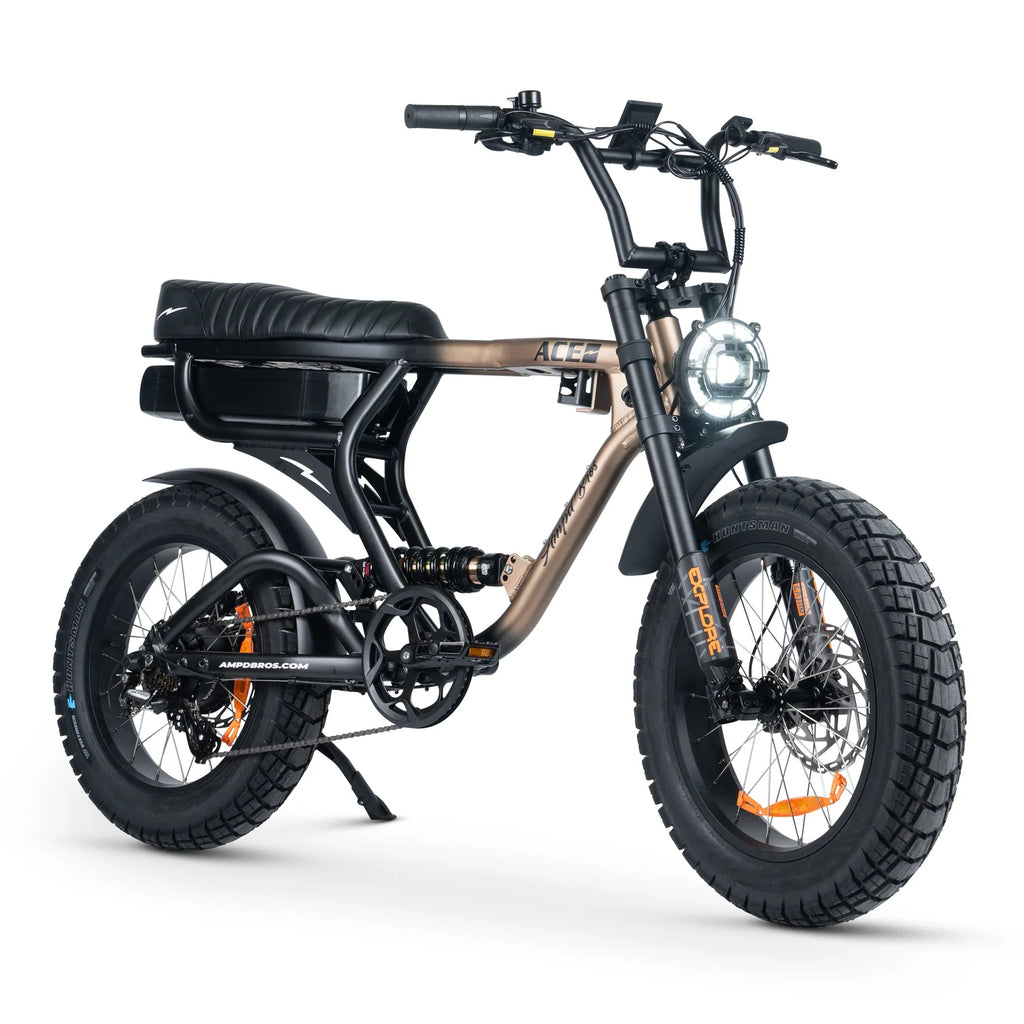

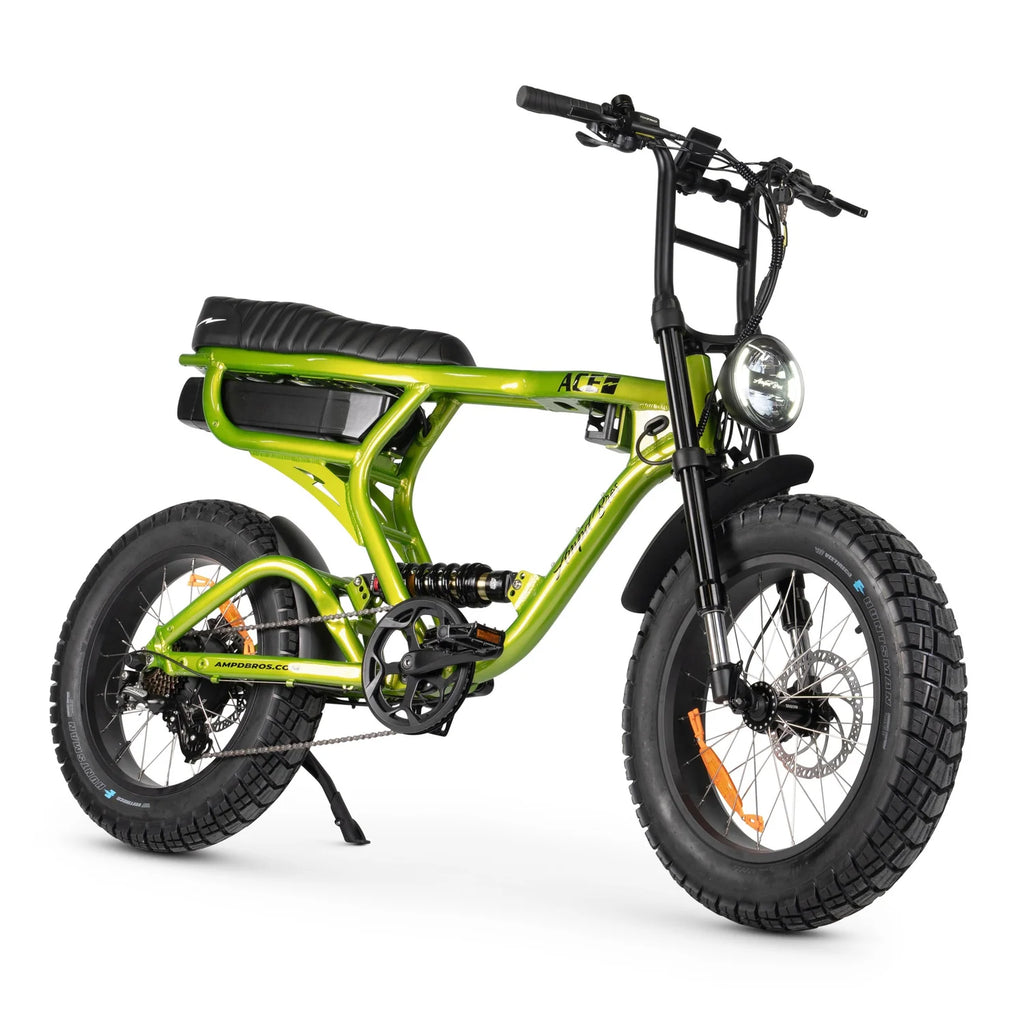

- 4 Premium New Metallic Paint Finishes, including the showstopper "Bronze Eclipse", Gloss Midnight Black, Gloss Jungle Green and Matte Titanium.
- Patented Rear Suspension Design Enabling 100mm of Seat Height Adjustment
- Plush Quilted Seat and VEE Tire Huntsman Puncture Resistant Tyres
Step up to the ACE-X PRO, our iconic high cross bar "X" frame model. Equipped with an adjustable coffee cup and bottle holder, a spacious seat for two, and a massive Removable Samsung Battery with a 100km Range, this beast will take you on unimaginable adventures. Paired with Bafang's High Torque 95Nm Motor, no terrain can hold you back – beaches, hills, dirt tracks, grass, or pavement, you name it!
Feel the surge of adrenaline as the insane levels of torque propel you forward, conquering every obstacle in your path. Pedal Assist is standard, but with our Off Road Throttle Kit, you can cruise effortlessly with minimal effort. Gear shifts are lightning-fast and precise, thanks to the 7-speed Shimano Rapid Fire trigger shifter and Altus transmission.
Specifications
ACE PRO SERIES 4
Speed & Range
- Range 100km* (Single Motor Only)
- Top Speed 25km/h (or Unlock up to 50km/h for Private Property Use)
Battery
- Standard 52V / 1,200Wh, 25AH
- Samsung Premium 21700 Lithium cells
- Battery is removable and can be charged in bike or separately.
Ride Modes
- Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
- Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
- Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
Features
- Hill Ability Up to 30º Degree / 60% Incline PAS
- Seat Custom Large Quilted Plush Dual Seat for 2 Riders
- Warranty 2 Years (1 Year on Batteries)

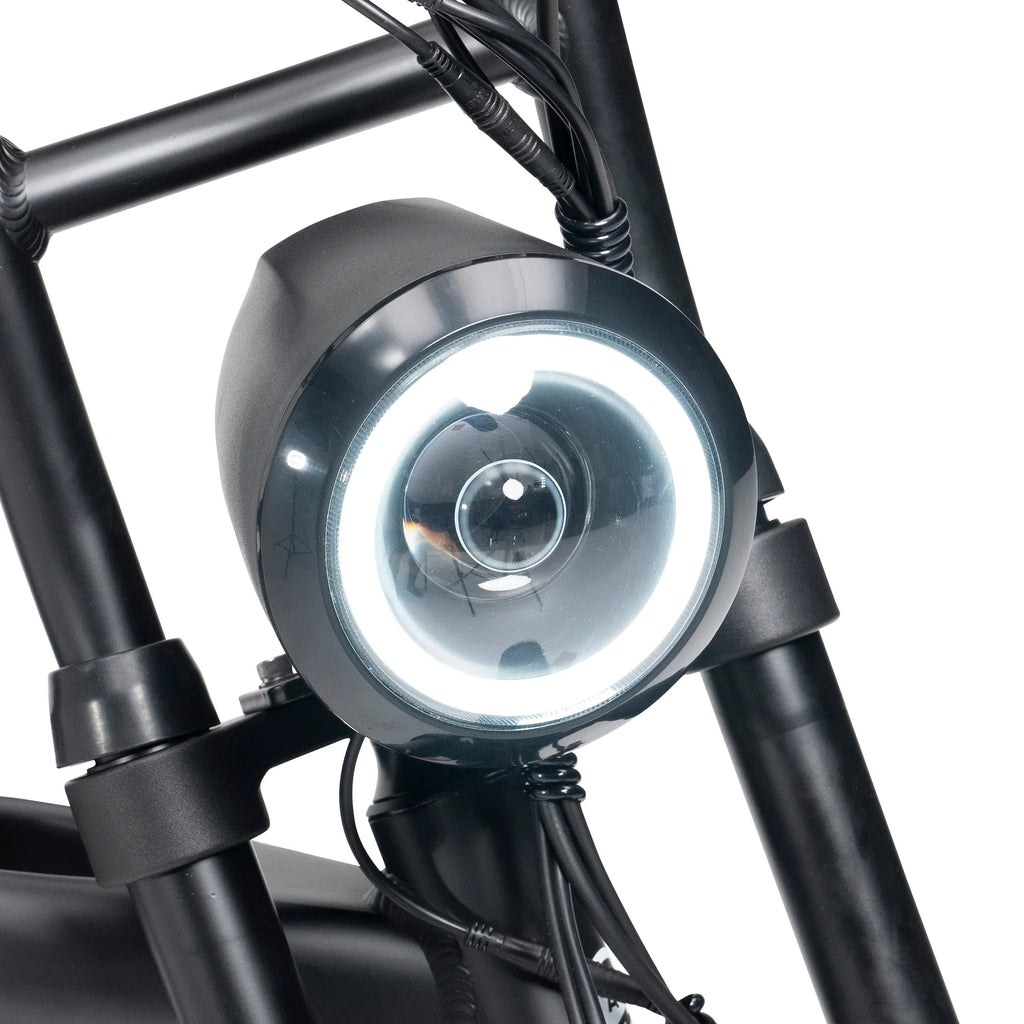

- Ace Pro Headlight Ampd Bros Signature 800lm LED Light with DRL
- Lights Rear LED Brake Light inbuilt to battery pack
- Grips Velo Wide Comfort
- Bell Yes
Brakes

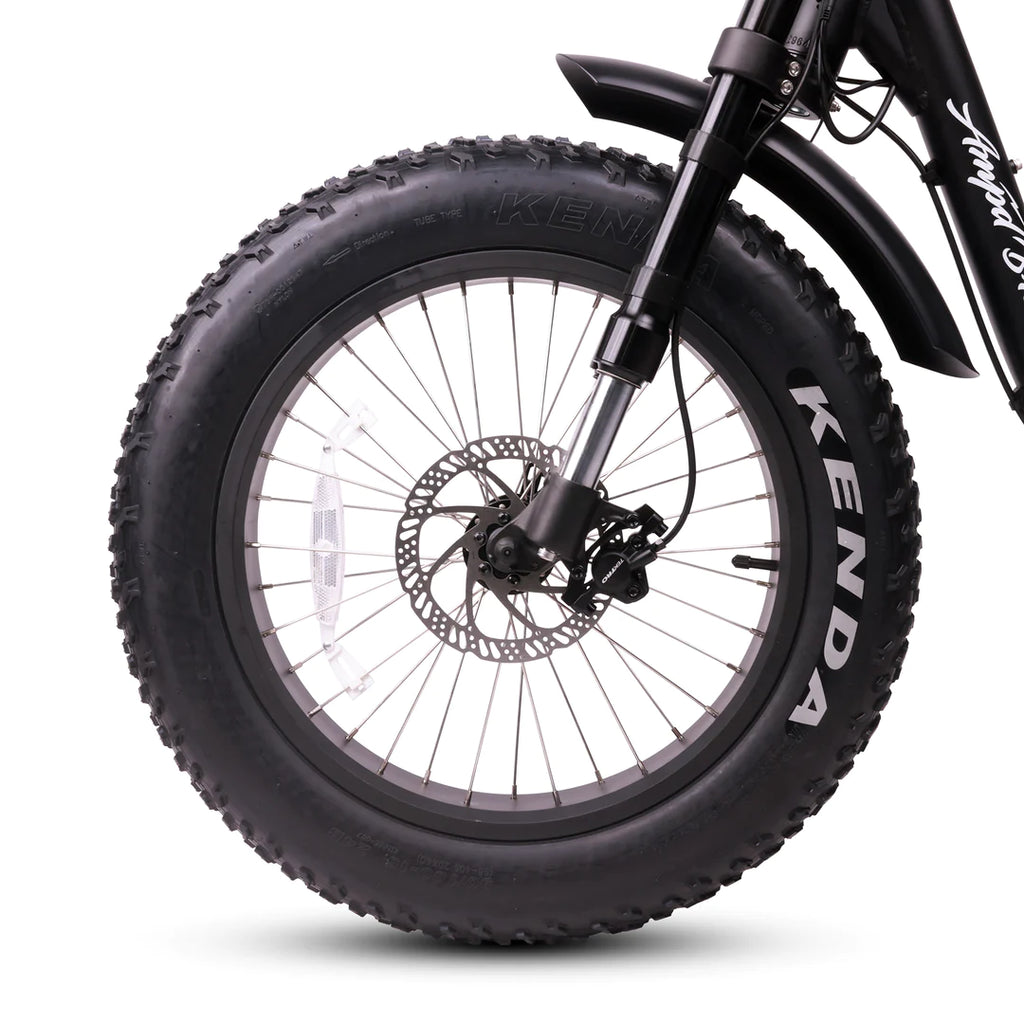

- Standard Tektro 4 Piston Hydraulic Disc
- Discs 203mm
- E-Brakes Yes Motor Safety Cut Off
Display

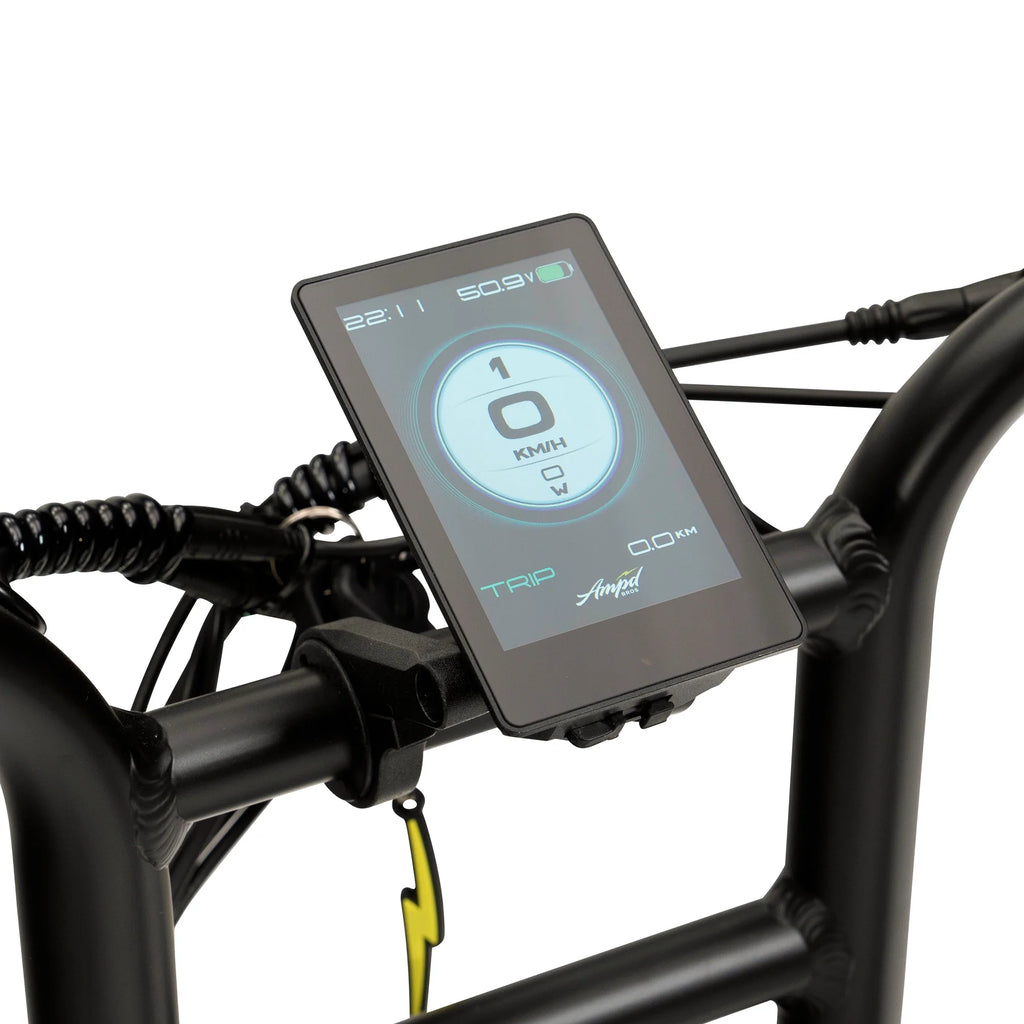

- Colour LCD Multi-Function with USB, ODO, Trip, Battery Level, Speed etc
Controller
- Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.
Drivetrain
- Motor Type Bafang RMG 062D & 063D Latest Gen Hub Drive
- Ace Pro Motor Single Rear Limited to 250W (Unlocked 1,000W)
- Ace Demon Motors AWD Dual Drive Limited to 250W (Unlock to 1,000W Front & Rear - 2,000W Total)
- Ace Pro Torque High Torque 95n.m
- Ace Demon Torque High Torque 190n.m (Combined)

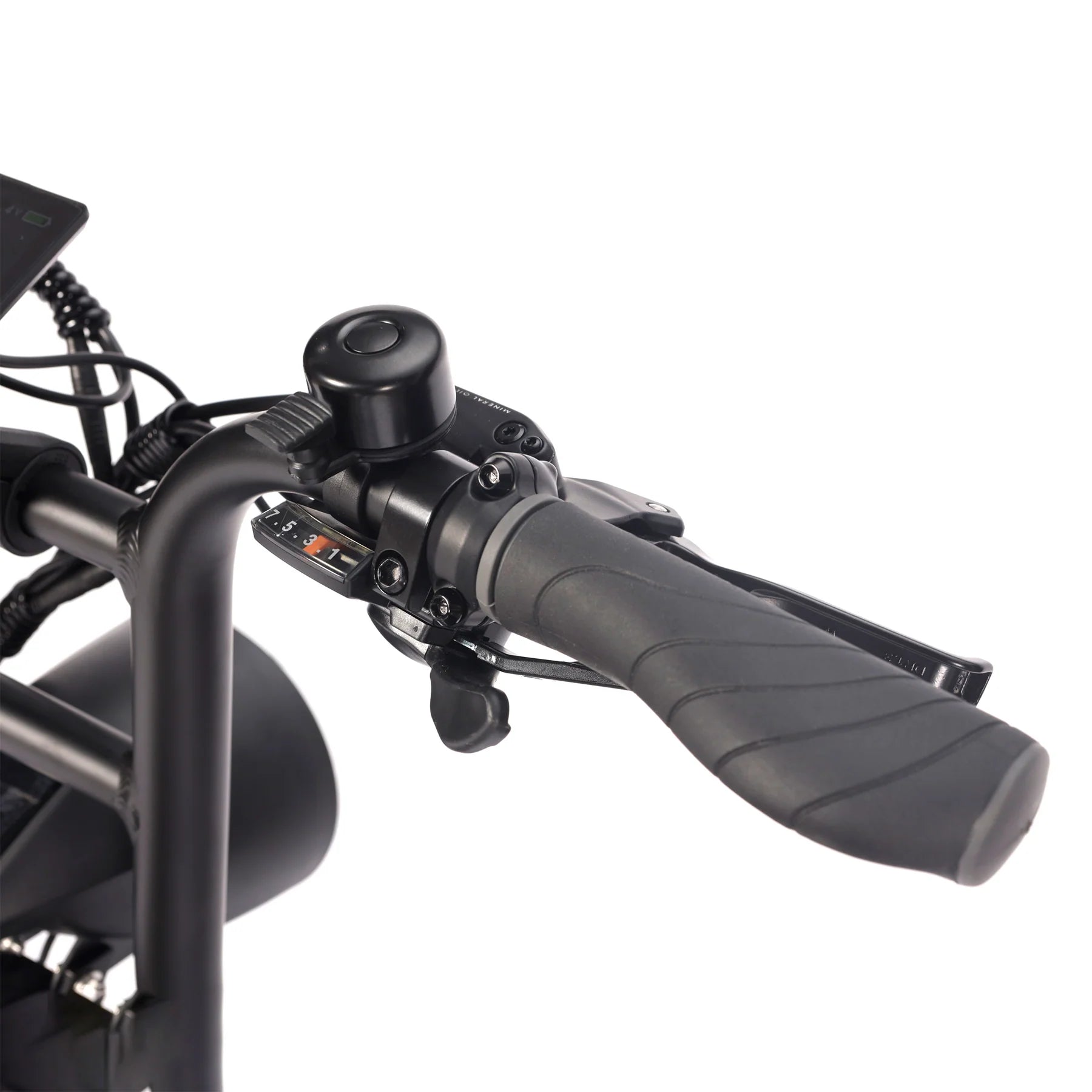

- Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
- Derailleur Shimano Altus
- Pedals Wellgo Alloy - Black
- Chain KMC Z Series High Performance
Construction

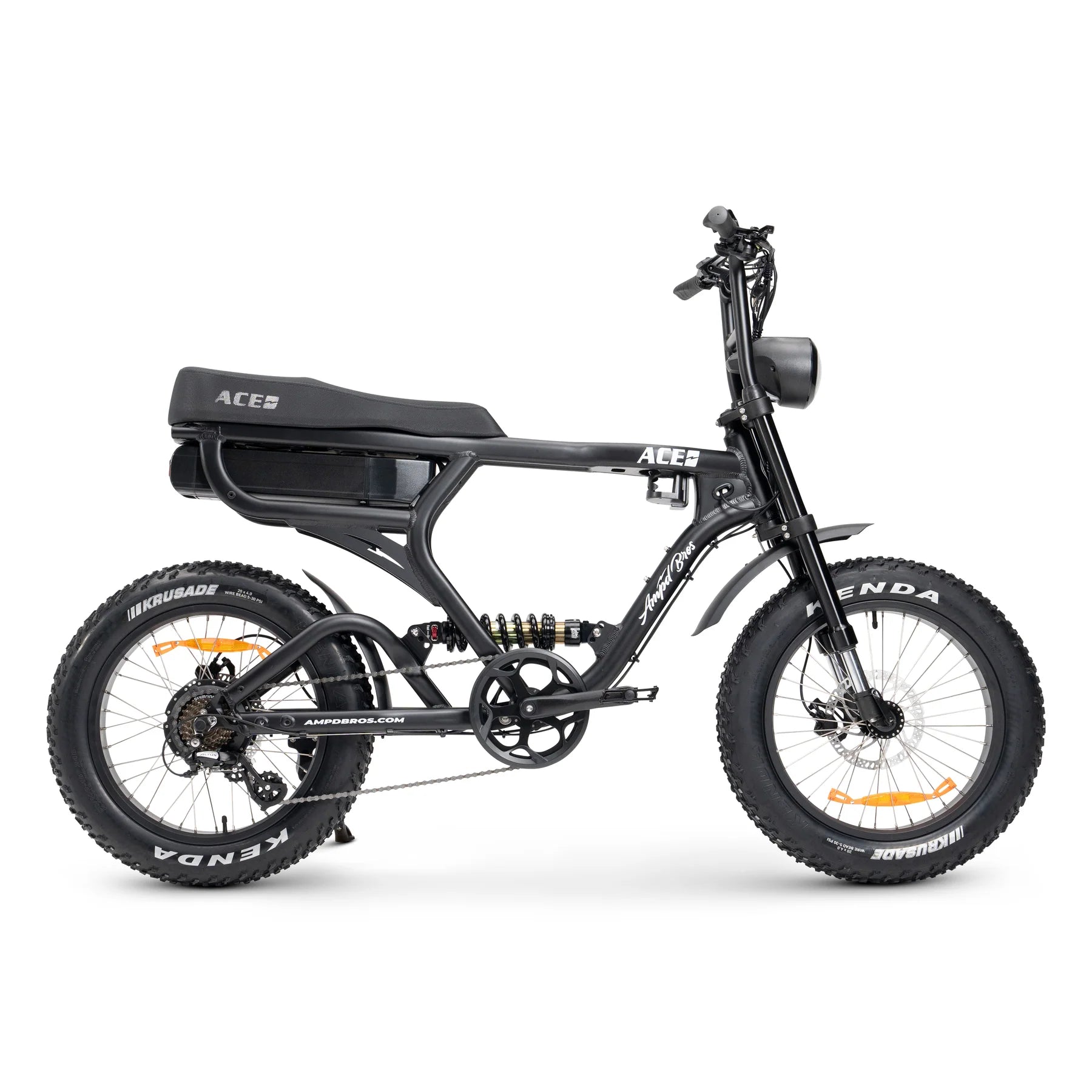

- Frame Aluminium - "X" Step Over Bar Design
- Handlebars Aluminium Motorcycle Inspired with Adjustable Height
- Fenders Matte Black Aluminium
Suspension
- Standard Front Independent & Rear Adjustable DNM
Wheels & Tyres
- 20x4.0" Vee Tire Huntsman Puncture Resistant All Terrain Tyres
Charging
- 8.5hrs for 25Ah Batteries with Standard 3A Included Charger
- Optional 5A fast Charger Available

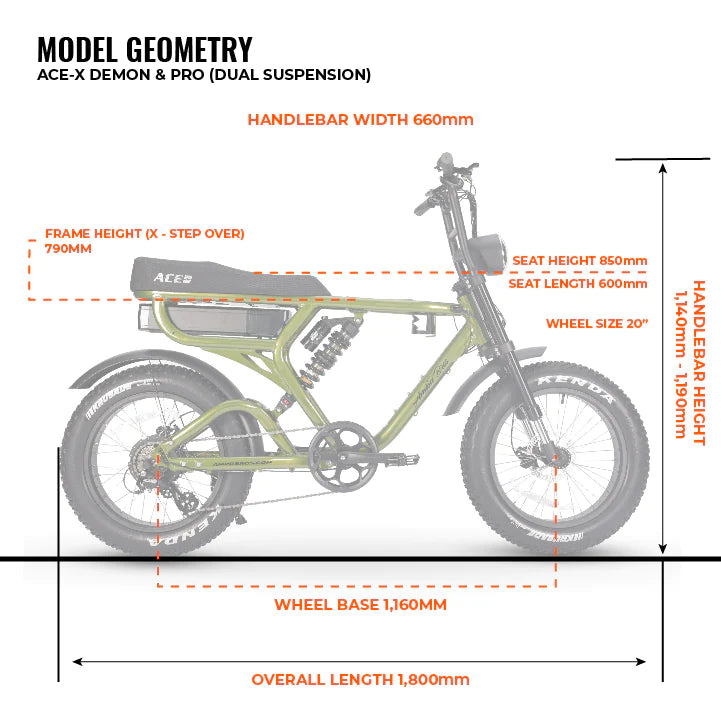

Dimensions
- Overall Length 1,800 mm
- Handlebar Height 1,140 - 1,190 mm
- Handlebar Width 660 mm
- Seat Height 880mm (Adjustable between 850-950mm)
- Seat Length 600 mm
- Ground Clearance 270 mm
- Wheel Base 1,160 mm
- Rider Height Ideal for Riders up to 200cm Tall
Weights
- N.W of 25Ah Battery 6.25 kg
- N.W of ACE Pro + Battery 44.4 kg
- Max Loading 180 kg
Shipping
Shipping
- Free Shipping On E-Bikes Australia Wide
- Free Assembly With In-Store Pick Ups (Noosa)
Call Our Team
Call Our Team
Want to speak with one of our team members?
Call 1300 115 779
FAQ's
How Do I Place An Order?
Order securely via our website’s checkout system. Alternatively you can contact us if you need any assistance or prefer to place your order over the phone.
How Difficult Is The Assembly?
Our range of e-bikes are 85-95% pre-assembled. Follow the clear instructions to complete the process with ease.
If you need help, reach out via any of our contact channels.
Alternatively, if you purchase your e-bike through our website and pick it up in store, we will assemble your new e-bike for FREE.
What Are The Australian E-Bike Laws?
Visit your local state government website for latest e-bike laws. Generally, motor power must not exceed 250W, and the max pedal assist speed must be 25 km/h.
When it comes to road legal eBike laws in Australia, it is important to note that you should always check your local laws for the latest rules and regulations. However, there are some general guidelines that apply across the country (at the time of this writing):
- A road legal eBike typically must have a maximum motor continuous power of 250W. However, in New South Wales (NSW), the maximum power allowed is 500W.
- The maximum pedal assist speed for a road legal eBike is 25 km/h.
- If the eBike is equipped with a throttle, it must be locked to a maximum speed of 6 km/h. This means the throttle can be used as a start aid to begin your ride and gain some momentum, but once you reach 6 km/h, you must start peddling and use the pedal assist mode.
- In pedal assist mode, the motor provides assistance as you pedal. On higher pedal assist levels, you may find that you barely need to put force on the pedals, resulting in a similar riding experience to using an unlocked throttle.
Is A Licence Required To Ride An E-Bike?
No licence is needed if your e-bike complies with Australian road legality standards.
Which Frame Type Is Best For Me, Step-over Or Step-through?
When it comes to choosing a bike frame type, there are a few factors to consider. Step-over and step-through frames are the two main options, each with their own advantages and considerations.
Step-over frames:
Step-over frames are the traditional choice and are characterised by a top tube that runs from the handlebars to the seat post. It is believed that step-over frames are lighter and more rigid, making them ideal for riders who prioritise speed and performance.
However, due to advancements in frame technology, many step-through frames are now just as light and provide comparable strength.
Therefore, the advantages of step-over frames are no longer as significant as they once were.
Step-through frames:
Step-through frames, on the other hand, offer more practicality and ease of use. With a step-through frame, you can get on and off the bike without having to lift your leg over the top tube. This convenience is especially beneficial for riders who prioritise practicality over the aesthetics of the bike. Step-through frames are also better suited for shorter riders, as the top tube of a step-over frame may make it difficult for them to stand over it comfortably.
If a bike is going to be shared among family members with different genders and heights, a step-through frame is recommended. Additionally, if you plan on carrying a surfboard on your bike, a step-through frame is better since you won't have to step over the frame and the surfboard rack each time you want to get on or off the bike.
However, it's important to note that some customers prefer the look of a step-over bike. Furthermore, a top tube can be useful if you need to mount a child seat at the front or carry cargo, or if you want to attach various accessories to the frame.
A few years ago, 70% of our customers preferred the step over frame and 30% preferred the step through frame. Now the trend has changed towards the step through frame, with 60% of our customers choosing it and 40% going with the step over frame.
It's up to you to decide which frame type is best for your needs or looks more appealing to you. However, if you can't decide, we would suggest going with the step through frame.
Battery Maintenance and Prolonging Life Tips?
On average, batteries last 500-1000 recharge cycles or 2-4 years.
Proper maintenance of your eBike battery is essential to ensure its longevity and optimal performance. By following these tips, you can prolong the life of your battery and enjoy a more reliable riding experience.
1. Charge between 20% to 80%
Keeping your eBike battery's charge level between 20% and 80% can help double its longevity. Avoid draining the battery completely or letting it sit at full charge for extended periods.
2. Avoid Extreme Temperatures
Extreme temperatures can negatively impact your eBike battery's performance and lifespan. Do not expose the battery to very cold or very hot temperatures, as this can cause permanent damage. Store the battery in a cool and dry place when not in use.
3. Use the Original Charger
Always use the original charger that came with your eBike.
4. Avoid Overcharging
Do not leave your eBike battery on charge for an extended period after it has reached full capacity. Overcharging can strain the battery cells and shorten their lifespan. Unplug the charger as soon as the battery is fully charged.
By following these guidelines, you can optimize the performance and lifespan of your eBike battery, ensuring many enjoyable rides for years to come.
