CHUBBIE-S Electric Beach Cruiser Bike

Introducing "Chubbie" - Your Ultimate Electric Fat Tyre Beach Cruiser

Experience a one-of-a-kind ride with Chubbie, our original retro electric beach cruiser. 🚲 It's customizable design adapts to every occasion, allowing you to easily add surf racks, child seats, baskets, and more thanks to the versatile rear cargo rack carrier and it's unique multi-point universal headset adapter! Plus, Chubbie is available in both the classic step-over or our convenient low step-through design frames.

Chubbie boasts a sleek, durable construction and an exceptionally comfortable Velo Seat, along with a powerful Samsung Battery 💥 offering an impressive range. Paired with the robust Bafang 80Nm Motor you'll conquer sand, hills, dirt, and more with ease. The 7-speed Shimano transmission ⚙️ and lightweight aluminum frame ensure you're never stranded.

Specifications

CHUBBIE CRUISERS

SPEED & RANGE

•  Range 80km
•  Top Speed 25km/h (or Unlock up to 45km/h for Private Property Use)

BATTERY

•  Samsung 48V / 960Wh, 20AH Premium 21700 lithium cells.
• Battery is removable and can be charged in bike or separately.

RIDE MODES

•  Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
•  Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
•  Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit

FEATURES

•  Hill Ability Up to 15º Degree / 25% Incline PAS
•  Seat Velo Comfort Seat with Adjustable Height
•  Warranty 2 Years (1 Year on Batteries)
•  Lights Aluminium Front 5W/100lm LED Black
•  Grips Velo Wide Comfort
•  Bell Yes

BRAKES

•  Front and Rear Tektro Hydraulic Disc
•  Discs 180mm
•  E-Brakes Yes Motor Safety Cut Off

DISPLAY

• LCD Multi-Function with USB, ODO, Trip, Battery Level, Speed etc

CONTROLLER

• Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.

DRIVETRAIN

•  Electric Motor Bafang RMG060 Rear Hub Drive
•  Power Output 750W - Limited to 25km/h for Australian Regulations
•  Max Torque 80n.m
•  Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
•  Derailleur Shimano Altus
•  Pedals Wellgo Alloy - Black
•  Chain KMC Z Series High Performance

CONSTRUCTION

•  Frame Aluminium - Step Over or Step Through Low Bar Designs
•  Handlebars Aluminium with Promax Adjustable Stem

SUSPENSION

•  N/A - Can be optioned with Promax Suspension Seat Post for maximum comfort

WHEELS & TYRES

•  26x4.0" Kenda Krusade Fat Mud Tyres (Varies by Model)
•  26x4.0" Compass Street Fat Tyres (Varies by Model)

CHARGING

• 6-7hrs with Standard 3A Included Charger
• Optional 5A Fast Charger Available

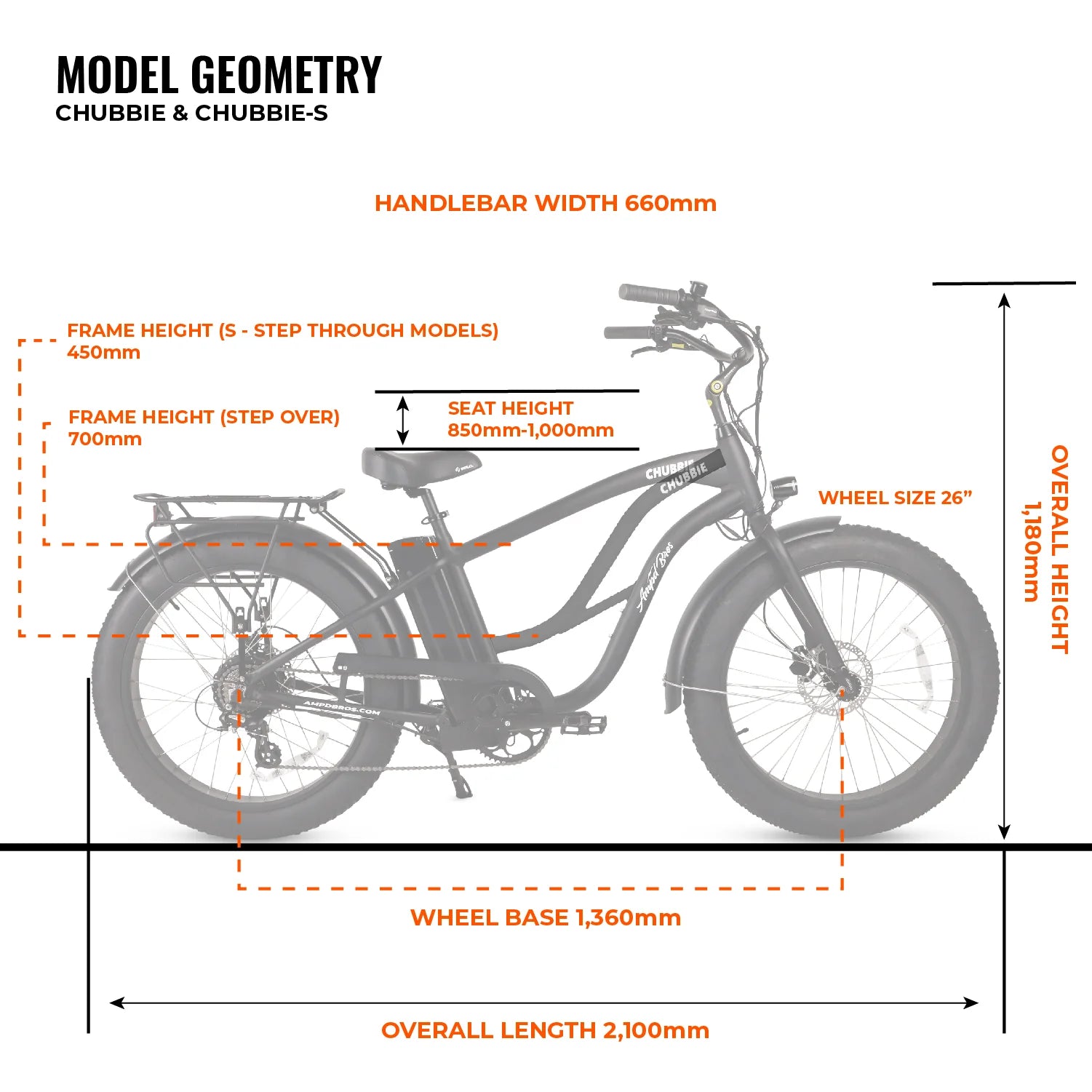

DIMENSIONS

•  Overall Length 2,100 mm
•  Handlebar Height 1,180mm
•  Handlebar Width 660mm
•  Seat Height 850-1,000mm Adjustable
•  Ground Clearance 230 mm
•  Wheel Base 1,360 mm
•  Rider Height Ideal for Riders up to 210cm Tall

WEIGHTS

•  N.W of Battery 3.73kg
• N.W of Bike 38 kg
• Max Loading 120 kg
