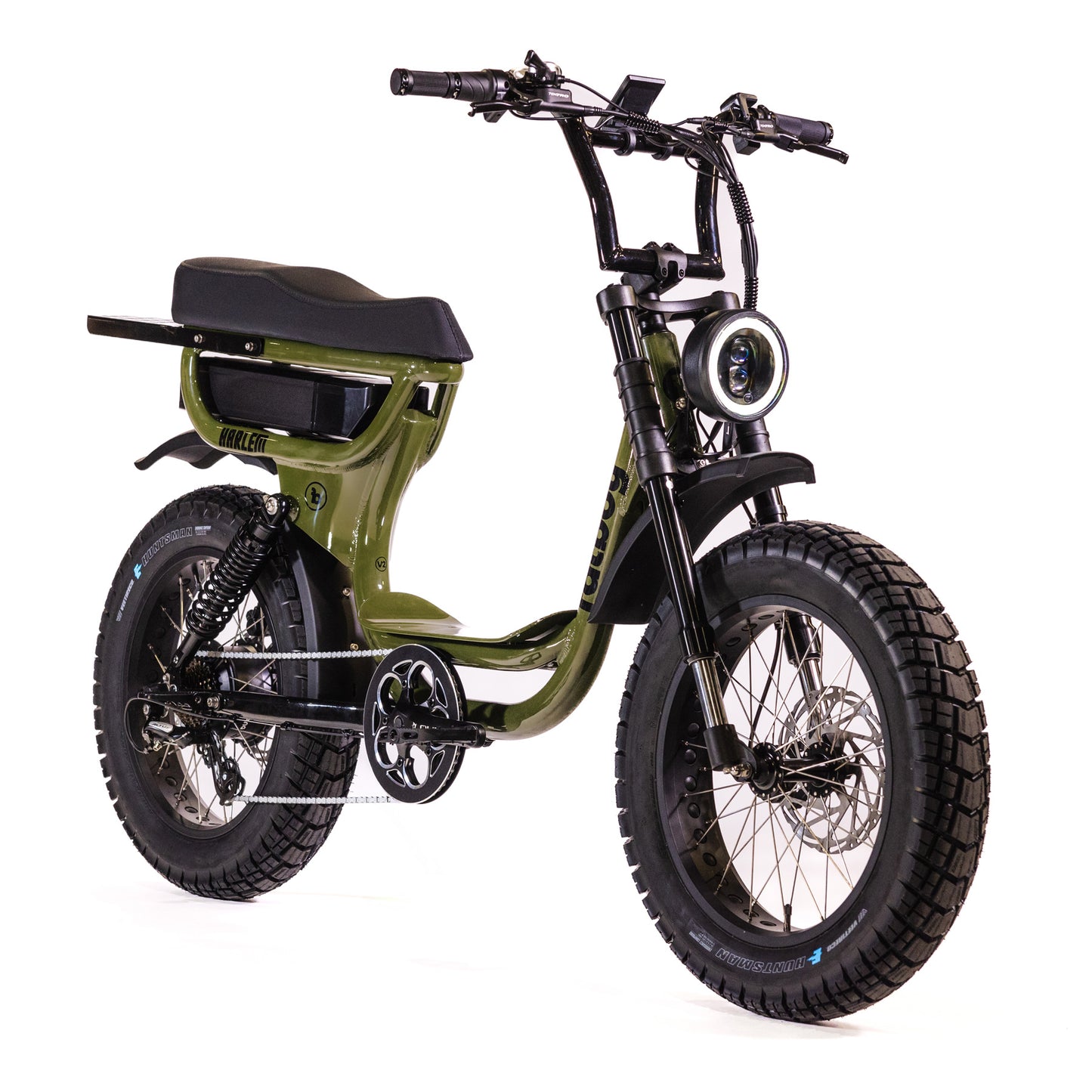

THE HARLEM
The Fatboy Harlem V2* is our step through two-seater eBike and comes standard with class leading features including BAFANG HUB Motor with peak power capability of 1560Watts, 1040Wh SAMSUNG Battery, 203mm TEKTRO Hydraulic Disc Brakes, 7 Speed Shimano Gearing, Super bright colour LCD Display, upgraded front suspension with 30mm more travel and rear adjustable motorcycle suspension, 2 seater gripper seat with rear passenger foot pegs, 180kg weight rating and finally our all inclusive 2 year warranty.
Fatboy Bikes speed can be derestricted for private property use only and must be restricted again when in public domain. Throttle is to be used on private property only and should be isolated in public domain.
The upgraded 52V system when compared to the 48V system provides plenty of extra torque and range. So strap yourself in folks the Fatboy Scrambler V2 two seater eBike has arrived.
Standard Inclusions:
- Throttle with isolator
- Rear passenger footpegs
- Super bright 3 stage headlight with daytime running feature
- Rear cargo rack
- Vee rubber puncture resistant tyres
- Bright LCD colour display w. USB charging capability
- Front & rear adjustable suspension
| Model Name | The Harlem – by Fatboy Bikes |
| Motor | 52V BAFANG HUB Motor with peak power capability of 1560Watts |
| Battery | 52V 20AH SAMSUNG Lithium-ion |
| Charge Time | 4-6 hours |
| Charger | 52V 2A |
| Controller | 52V 30A |
| Estimated Range | 100km Max on full charge |
| Display | Water & Dirt Resistant LCD Colour display w. USB phone charging |
| Drive Mode | Cadence Sensing Pedal Assist 1:9 + Twist Throttle w. Isolator |
| Top Speed | Public Use Speed Restricted to 25 km/h (55km/h unlocked for private use only) |
| Frame | Premium Quality Lightweight Aluminium Alloy |
| Fork | Suspension Fork |
| Gearing | SHIMANO 7 Speed |
| Shift | SHIMANO 7 Speed |
| Derailer | SHIMANO Atlus |
| Cranks | High Quality Ounce Alloy Crank |
| Pedals | Wellgo |
| Footpegs | Alloy |
| Headset | Sealed Bearing |
| Stem & Handlebar | Adjustable Aluminium Alloy |
| Brake | Large diameter 203mm TEKTRO Hydraulic Disc Brake |
| Levers | TEKTRO Levers and Motor Inhibitor |
| Grips | Rubber Grips |
| Saddle | Custom 2 Seater Gripper Seat |
| Rim | Aluminium Alloy w. Holes |
| Spokes | Stainless Steel |
| Tire | Vee Rubber Puncture Resistant Tyres |
| Fenders | Moulded Plastic |
| Kickstand | Alloy Kickstand |
| Head Light | Light Sensing 3 Stage Bright LED |
| Tail Light | Light Sensing 3 Stage Bright LED |
| Included Accessories | Light Sensing LED Headlight & Tail Light, Passenger Footpegs, Mudguards, Hand Throttle w. Isolator |
| Colour | Gloss Black | Blush Pink | White Noise |
| Bike Weight | 38KG bike only |
