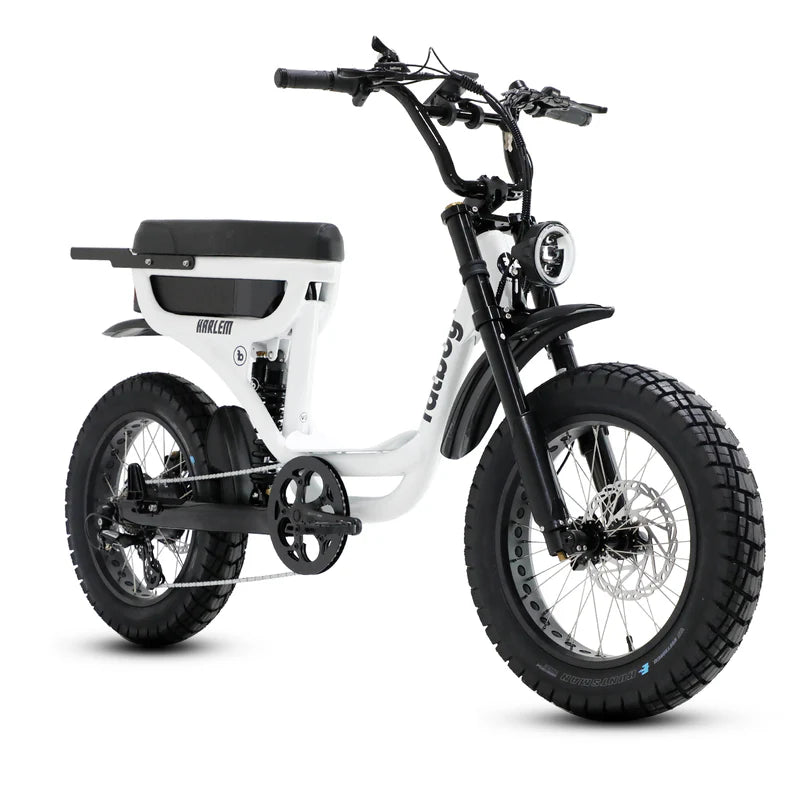

Harlem V3 EBike
Harlem V3 EBike
Couldn't load pickup availability
The Harlem is built to make riding easy, welcoming and fun. Smooth, approachable and always reliable, it turns daily trips into stress-free moments. The latest version is more efficient, more comfortable and more capable. From school runs to coffee catch ups, it keeps things simple while fitting right into family life. The step through frame makes it an ideal choice for smaller riders or anyone who wants maximum comfort with minimum effort.
INTRODUCING FBX
Developed alongside Bafang, FBX is a unified power architecture that connects the battery, motor and controller into one intelligent ecosystem. The result is a smoother ride, unrivalled efficiency and a new level of control built into the core of every Fatboy V3.
UNREAL SUSPENSION
The new Fatboy front suspension is an industry first for fat-tire e-bikes. Built from our own tooling, they are engineered to match the weight and geometry of every Fatboy V3. The front suspension includes preload, compression and rebound tuning, allowing precise control over how the bike feels on every ride.
The Harlem, Scrambler and Bagus now feature fully adjustable front and rear suspension, giving you the freedom to fine tune your setup for any terrain.
UPGRADED BRAKES
Our upgraded braking system uses custom components built specifically for Fatboy bikes. Instead of off-the-shelf parts, our 4-piston calipers run metal sintered pads with custom-designed cooling fins to manage heat at high speeds and deliver consistent performance in all conditions.
Paired with Fatboy moulded brake levers and heavy-duty 203mm discs now 2.9mm thick, the system delivers stronger, longer-lasting and more controlled stopping power on every ride.
ENHANCED ERGONOMICS
From the first sketch to the final ride, comfort shaped the V3. A lower-profile seat welcomes more riders, new bars and grips set a comfortable posture, and a refined crank ratio keeps high-speed pedalling smooth and effortless.
PARENTAL CONTROLS
FBX introduces smart password protection that allows you to set and secure a custom top speed for your family bike. Whether you are creating safer limits for younger riders or simply managing shared access, the bike stays within your chosen speed until the password is entered.
Standard Inclusions:
- Throttle with isolator
- Rear passenger footpegs
- Super bright headlight with daytime running feature
- Rear cargo rack
- Vee rubber puncture resistant tyres
- Bright LCD colour display
- Front and rear adjustable suspension
Bagus, Scrambler and Harlem V3 models have variable maximum continuous power modes of Class 1 - 200 watts, Class 2 - 250 watts, Class 3 - 500 watts with a max load of 180 kgs. In the opinion of Fatboy Bikes this is inline with NSW EPAC legislation. Throttles are strictly for private property use and should be isolated when riding in public.
DNA V3 model is built in line with EN15194:2017. In the opinion of Fatboy Bikes this is inline with National EPAC legislation.
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
Specifications
MOTOR
52V BAFANG HUB Motor with 500W continuous rated power.
BATTERY
52V 20AH SAMSUNG Lithium-ion Battery.
CHARGE TIME
4-6 Hours Full Charge.
WARRANTY
2 Years Complete Bike Warranty.
DRIVE MODE
Cadence Sensing Pedal Assist + Twist Throttle w. Isolator included in box.
DISPLAY
Water & Dirt Resistant LCD Colour Display w. Phone Charging.
SPEED
Restricted 25 km/h Public Use.
SUSPENSION
Industry leading front and rear suspension.
GEARS
SHIMANO 7 Speed
BRAKES
Custom 4-Piston brakes with cooling fins.
WEIGHT CAPACITY
180 kgs Carrying Weight
CRANK
High Quality Ounce Alloy Crank
BIKE WEIGHT
45KG including battery
Shipping
Shipping
- Free Shipping On E-Bikes Australia Wide
- Free Assembly With In-Store Pick Ups (Noosa)
Call Our Team
Call Our Team
Want to speak with one of our team members?
Call 1300 115 779

FAQ's
How Do I Place An Order?
Order securely via our website’s checkout system. Alternatively you can contact us if you need any assistance or prefer to place your order over the phone.
How Difficult Is The Assembly?
Our range of e-bikes are 85-95% pre-assembled. Follow the clear instructions to complete the process with ease.
If you need help, reach out via any of our contact channels.
Alternatively, if you purchase your e-bike through our website and pick it up in store, we will assemble your new e-bike for FREE.
What Are The Australian E-Bike Laws?
Visit your local state government website for latest e-bike laws. Generally, motor power must not exceed 250W, and the max pedal assist speed must be 25 km/h.
When it comes to road legal eBike laws in Australia, it is important to note that you should always check your local laws for the latest rules and regulations. However, there are some general guidelines that apply across the country (at the time of this writing):
- A road legal eBike typically must have a maximum motor continuous power of 250W. However, in New South Wales (NSW), the maximum power allowed is 500W.
- The maximum pedal assist speed for a road legal eBike is 25 km/h.
- If the eBike is equipped with a throttle, it must be locked to a maximum speed of 6 km/h. This means the throttle can be used as a start aid to begin your ride and gain some momentum, but once you reach 6 km/h, you must start peddling and use the pedal assist mode.
- In pedal assist mode, the motor provides assistance as you pedal. On higher pedal assist levels, you may find that you barely need to put force on the pedals, resulting in a similar riding experience to using an unlocked throttle.
Is A Licence Required To Ride An E-Bike?
No licence is needed if your e-bike complies with Australian road legality standards.
Which Frame Type Is Best For Me, Step-over Or Step-through?
When it comes to choosing a bike frame type, there are a few factors to consider. Step-over and step-through frames are the two main options, each with their own advantages and considerations.
Step-over frames:
Step-over frames are the traditional choice and are characterised by a top tube that runs from the handlebars to the seat post. It is believed that step-over frames are lighter and more rigid, making them ideal for riders who prioritise speed and performance.
However, due to advancements in frame technology, many step-through frames are now just as light and provide comparable strength.
Therefore, the advantages of step-over frames are no longer as significant as they once were.
Step-through frames:
Step-through frames, on the other hand, offer more practicality and ease of use. With a step-through frame, you can get on and off the bike without having to lift your leg over the top tube. This convenience is especially beneficial for riders who prioritise practicality over the aesthetics of the bike. Step-through frames are also better suited for shorter riders, as the top tube of a step-over frame may make it difficult for them to stand over it comfortably.
If a bike is going to be shared among family members with different genders and heights, a step-through frame is recommended. Additionally, if you plan on carrying a surfboard on your bike, a step-through frame is better since you won't have to step over the frame and the surfboard rack each time you want to get on or off the bike.
However, it's important to note that some customers prefer the look of a step-over bike. Furthermore, a top tube can be useful if you need to mount a child seat at the front or carry cargo, or if you want to attach various accessories to the frame.
A few years ago, 70% of our customers preferred the step over frame and 30% preferred the step through frame. Now the trend has changed towards the step through frame, with 60% of our customers choosing it and 40% going with the step over frame.
It's up to you to decide which frame type is best for your needs or looks more appealing to you. However, if you can't decide, we would suggest going with the step through frame.
Battery Maintenance and Prolonging Life Tips?
On average, batteries last 500-1000 recharge cycles or 2-4 years.
Proper maintenance of your eBike battery is essential to ensure its longevity and optimal performance. By following these tips, you can prolong the life of your battery and enjoy a more reliable riding experience.
1. Charge between 20% to 80%
Keeping your eBike battery's charge level between 20% and 80% can help double its longevity. Avoid draining the battery completely or letting it sit at full charge for extended periods.
2. Avoid Extreme Temperatures
Extreme temperatures can negatively impact your eBike battery's performance and lifespan. Do not expose the battery to very cold or very hot temperatures, as this can cause permanent damage. Store the battery in a cool and dry place when not in use.
3. Use the Original Charger
Always use the original charger that came with your eBike.
4. Avoid Overcharging
Do not leave your eBike battery on charge for an extended period after it has reached full capacity. Overcharging can strain the battery cells and shorten their lifespan. Unplug the charger as soon as the battery is fully charged.
By following these guidelines, you can optimize the performance and lifespan of your eBike battery, ensuring many enjoyable rides for years to come.
