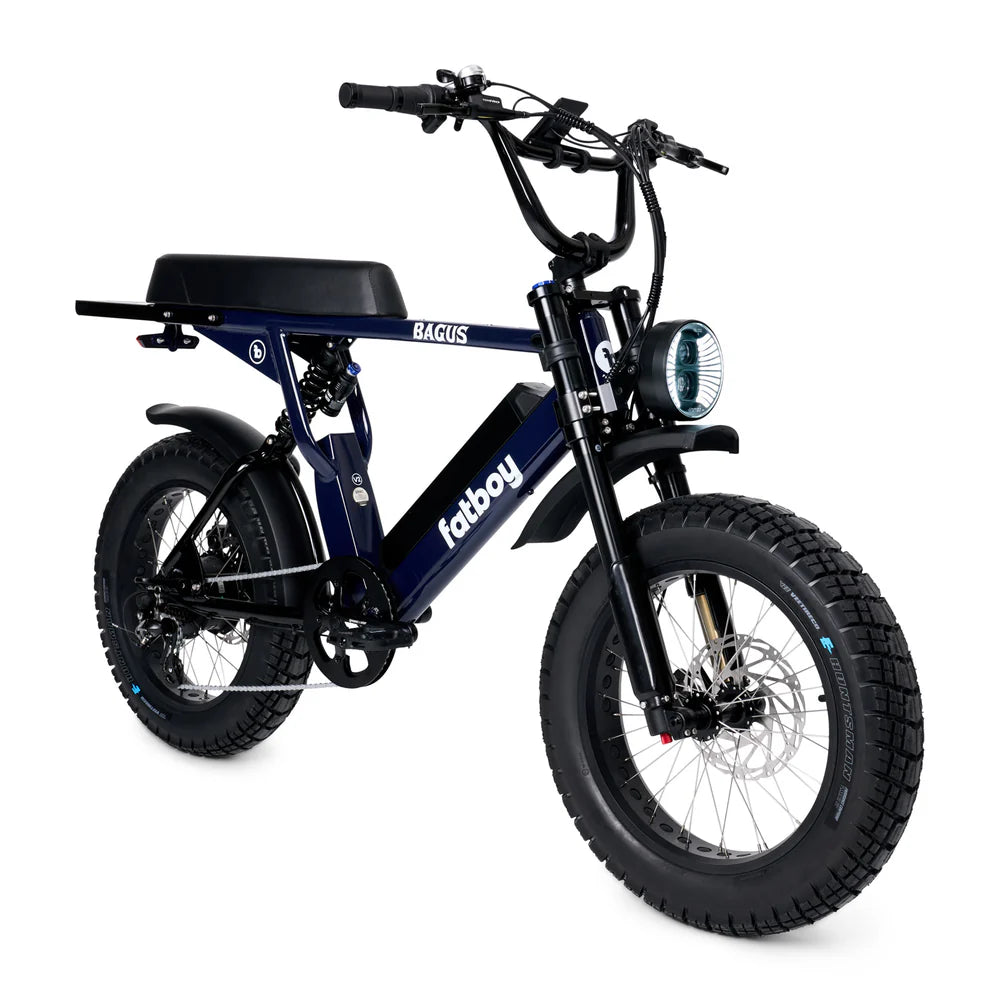

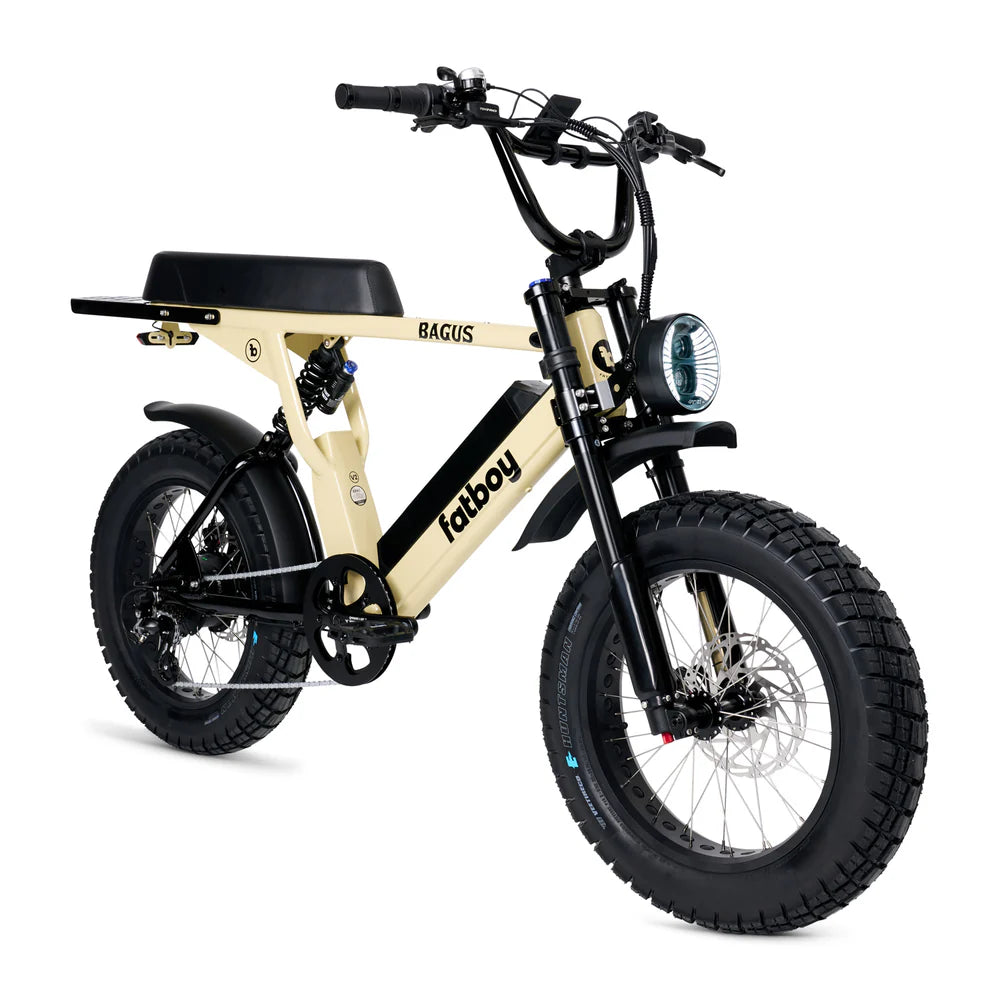

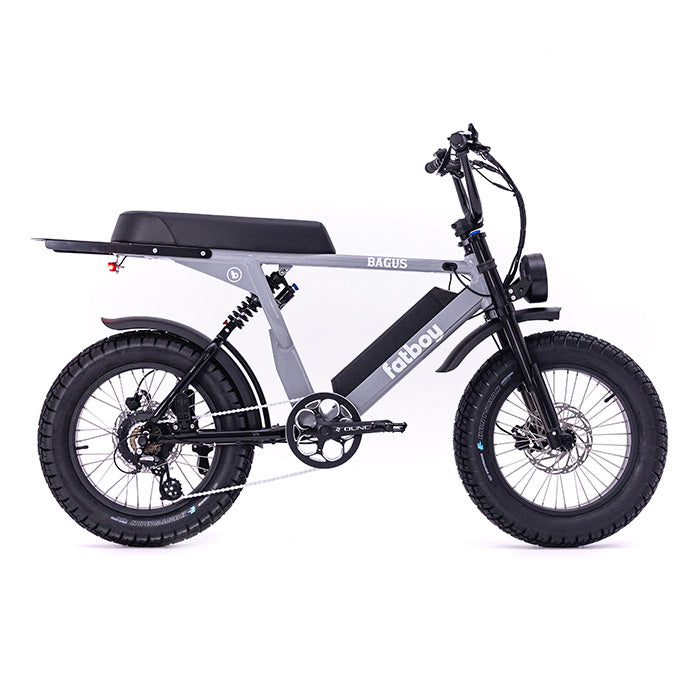

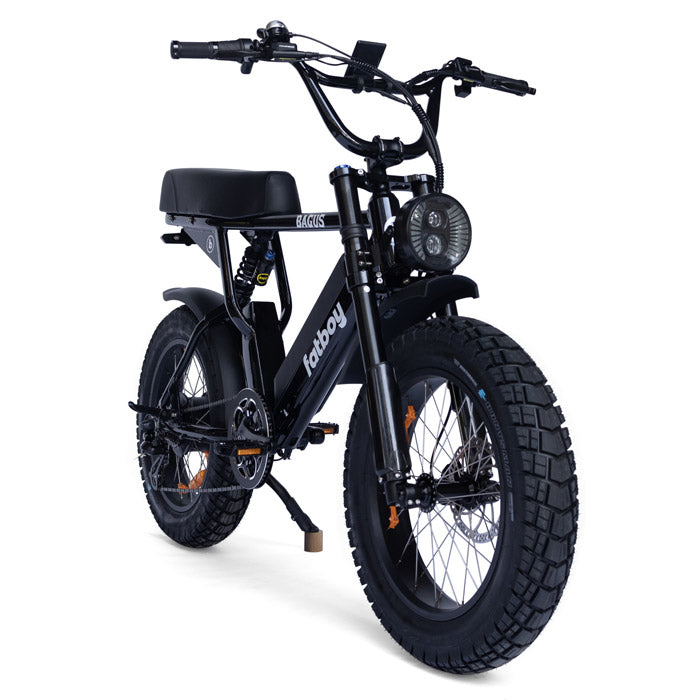

The Bagus is where style and performance reach their peak. Confident, refined, and unapologetically bold, it’s built for riders who want the very best and expect every ride to feel extraordinary. With a lower center of gravity, every ride feels sharper and more alive, whether you’re carving along the coast, powering through city streets, or pushing off-road. The Bagus sits at the top of the lineup, a bike that truly defines performance.
BATTERY
52V 20AH Samsung Battery UL2271 Compliant
Standard Inclusions:
- Throttle with isolator in the box, ready to install if you want throttle control
- Rear passenger footpegs
- Super bright 3 stage headlight with daytime running feature
- Rear cargo rack
- Vee rubber puncture resistant tyres
- Bright LCD colour display w. USB charging capability
- Front & rear adjustable suspension
All Fatboy Bikes V2 models have a maximum continuous power of 250 watts at 20km/h, or 500 watts at 25km/h with a max load of 180 kgs. In the opinion of Fatboy Bikes this is inline with NSW EPAC legislation. Throttles are strictly for private property use and should be isolated when riding in public.
Bagus, Scrambler and Harlem V3 models have variable maximum continuous power modes of Class 1 - 200 watts, Class 2 - 250 watts, Class 3 - 500 watts with a max load of 180 kgs. In the opinion of Fatboy Bikes this is inline with NSW EPAC legislation. Throttles are strictly for private property use and should be isolated when riding in public.
DNA V3 model is built in line with EN15194:2017. In the opinion of Fatboy Bikes this is inline with National EPAC legislation.
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.
Class Leading Motor
Featuring a high torque Bafang hub drive motor means more power and capability for steep inclines, two riders or off road use of your ebike
Samsung Battery
Safety tested Samsung 52V 20AH Lithium-ion Samsung battery featuring a sleep mode which protects your battery, removable and lockable with a built in LED tail light for extra safety
LED Bright Display
Our premium water & dirt resistant LCD colour display features built in phone charging capability, battery indicator, headlight control, trip, ODO, range and passcode settings
203mm Tektro Brakes
Bigger is always better, that's why our bikes all feature large diameter 203mm TEKTRO Hydraulic Disc Brakes ensuring better brake ability particularly for downhill or heavier load
Passenger Footpegs
We want you to share your adventures, which is why we have designed our bikes for two riders so we've included rear passenger footpegs as standard on all our bikes
LED Headlight
Designed for riding day and night - our bikes include a super bright 3 stage headlight with day time running feature, high beam and low beam so you can see and be seen when riding
Cargo Rack
Our new patented designed rear cargo rack to fit The Scrambler, The Bagus & The Harlem Fatboy Bikes V2 models. Maximum load capacity is 30kg. Compatible with our child seat adapter.

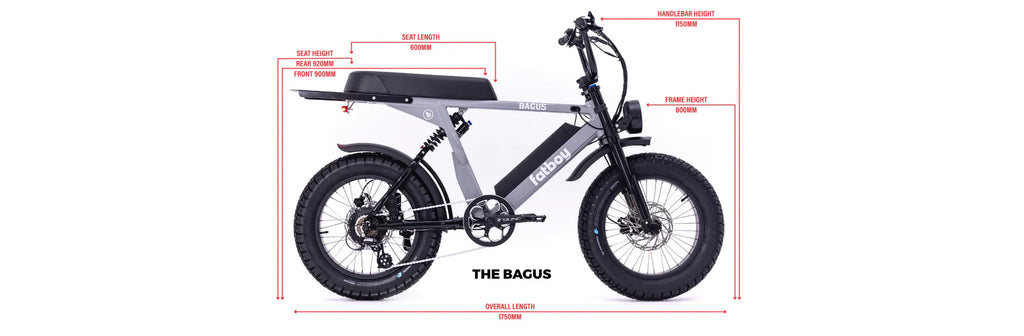

Specifications
MOTOR
52V BAFANG HUB Motor with 500W continuous rated power.
BATTERY
52V 20AH SAMSUNG Lithium-ion Battery - UL2271 Compliant
CHARGE TIME
4-6 Hours Full Charge
WARRANTY
2 Years Complete Bike Warranty
DRIVE MODE
Cadence Sensing Pedal Assist 1:9 + Twist Throttle w. Isolator inc in box
DISPLAY
Water & Dirt Resistant LCD Colour Display w. Phone Charging
SPEED
Restricted 25 km/h Public Use.
SUSPENSION
Class Leading Front And Rear Suspension
GEARS
SHIMANO 7 Speed
BRAKES
Large diameter 203mm TEKTRO Hydraulic Disc Brake
WEIGHT CAPACITY
Class Leading 180 kg Carrying Weight
CRANK
High Quality Ounce Alloy Crank
INCLUSIONS
3 Stage Light Sensing LED Headlight & Tail Light, Footpegs, Mudguards
BIKE WEIGHT
38KG including battery
