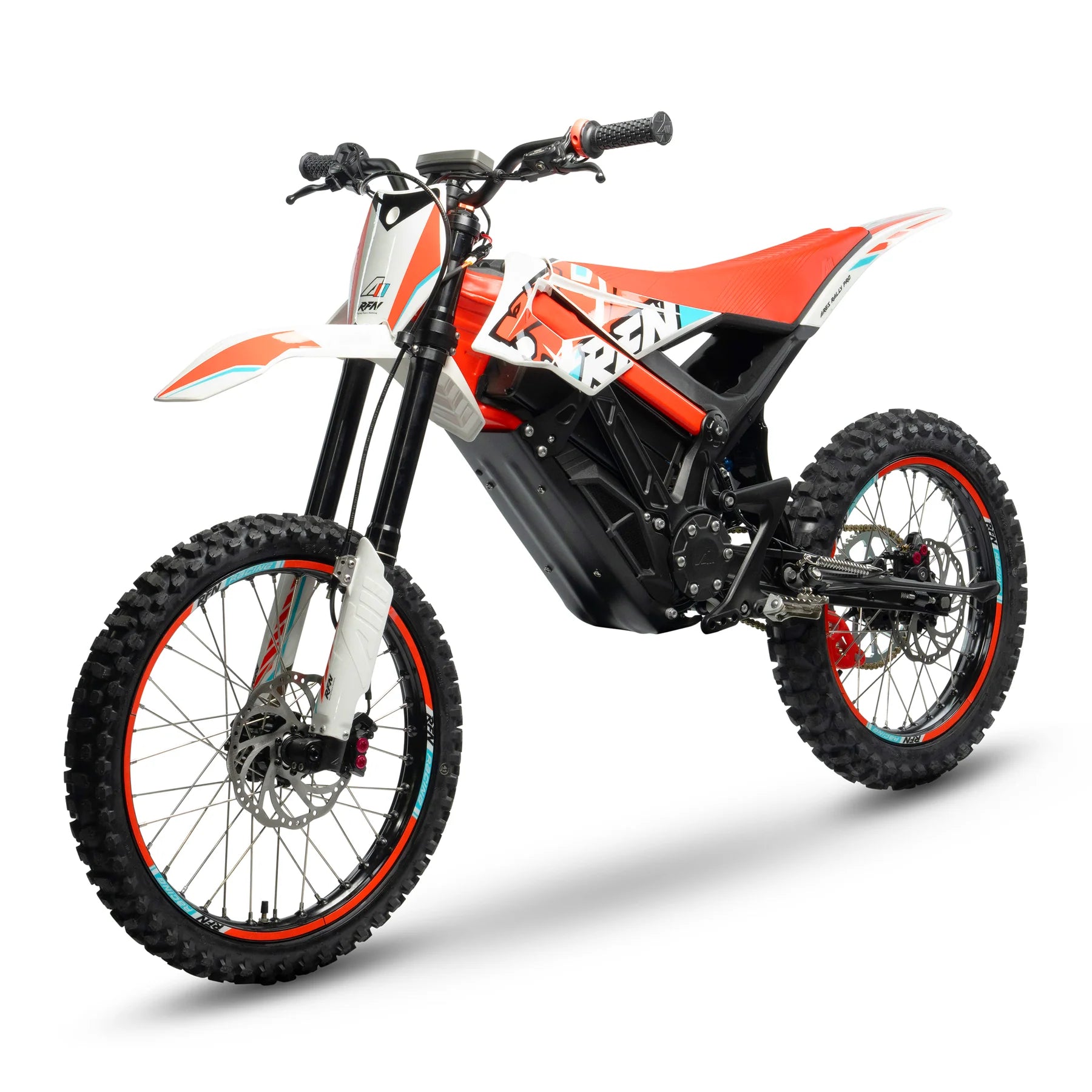

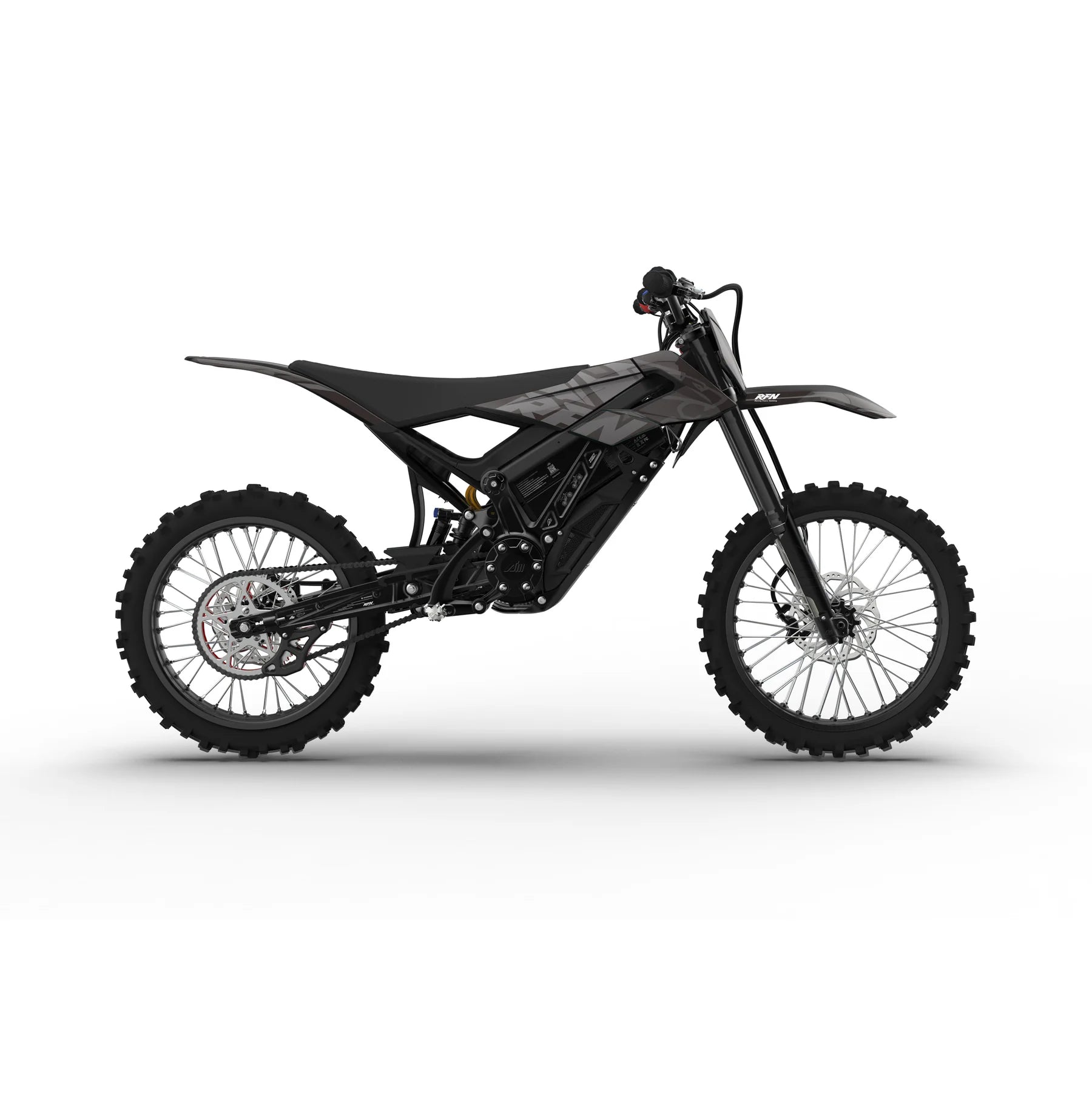

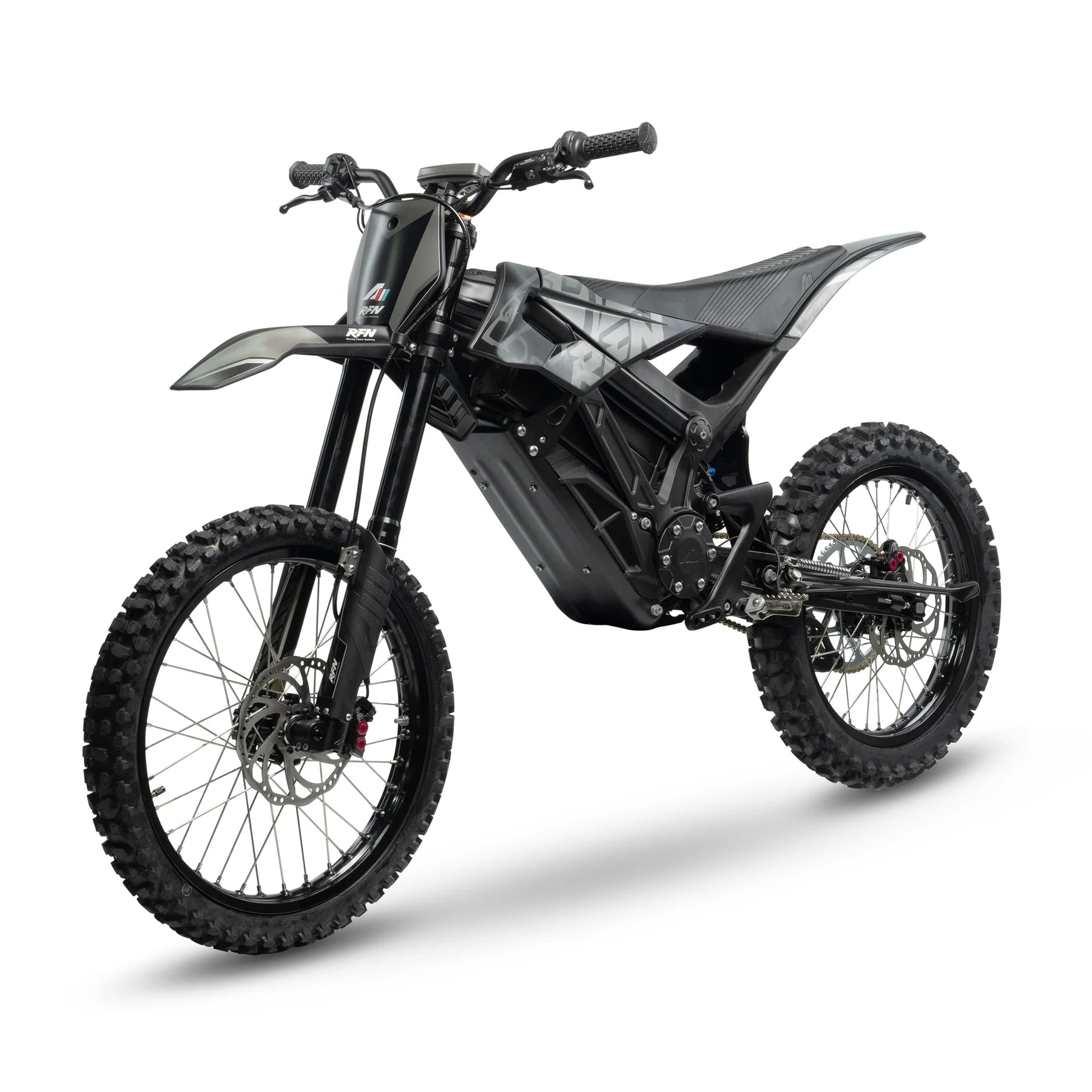

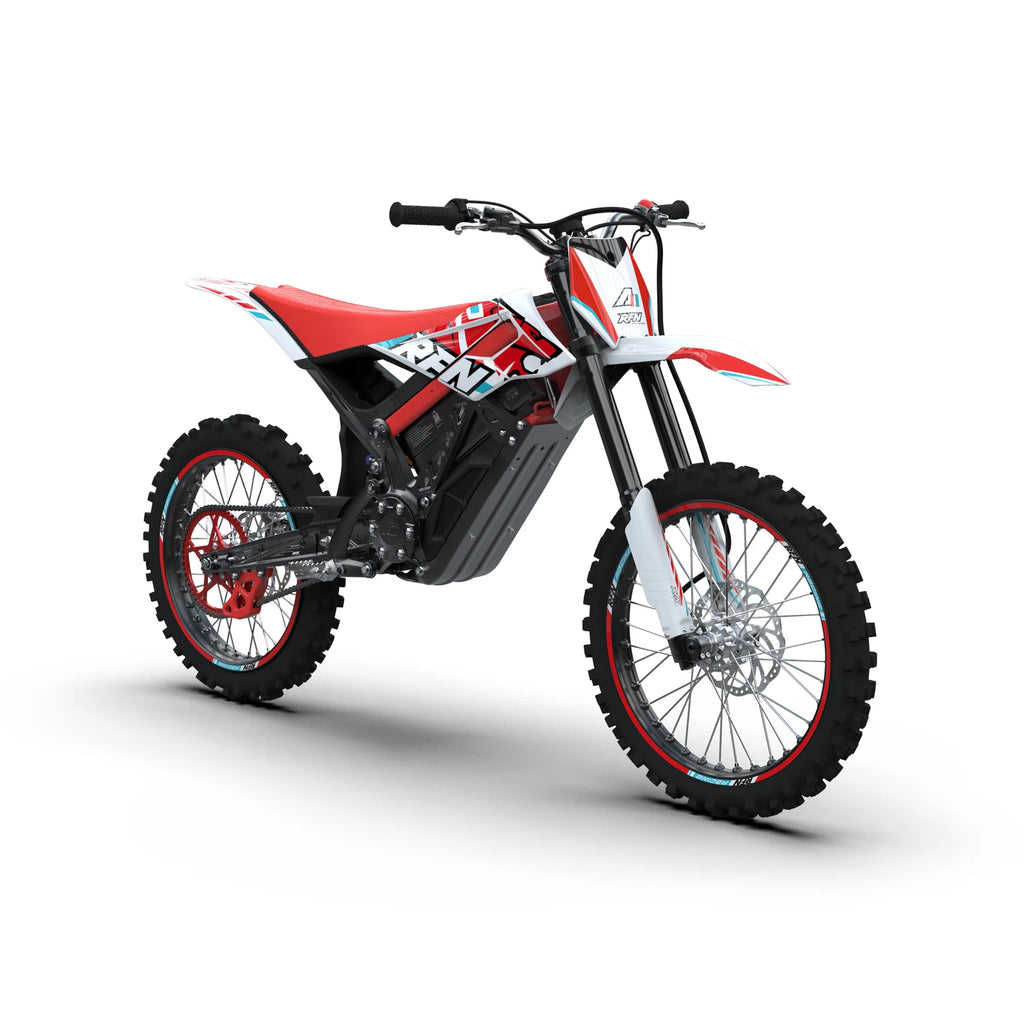

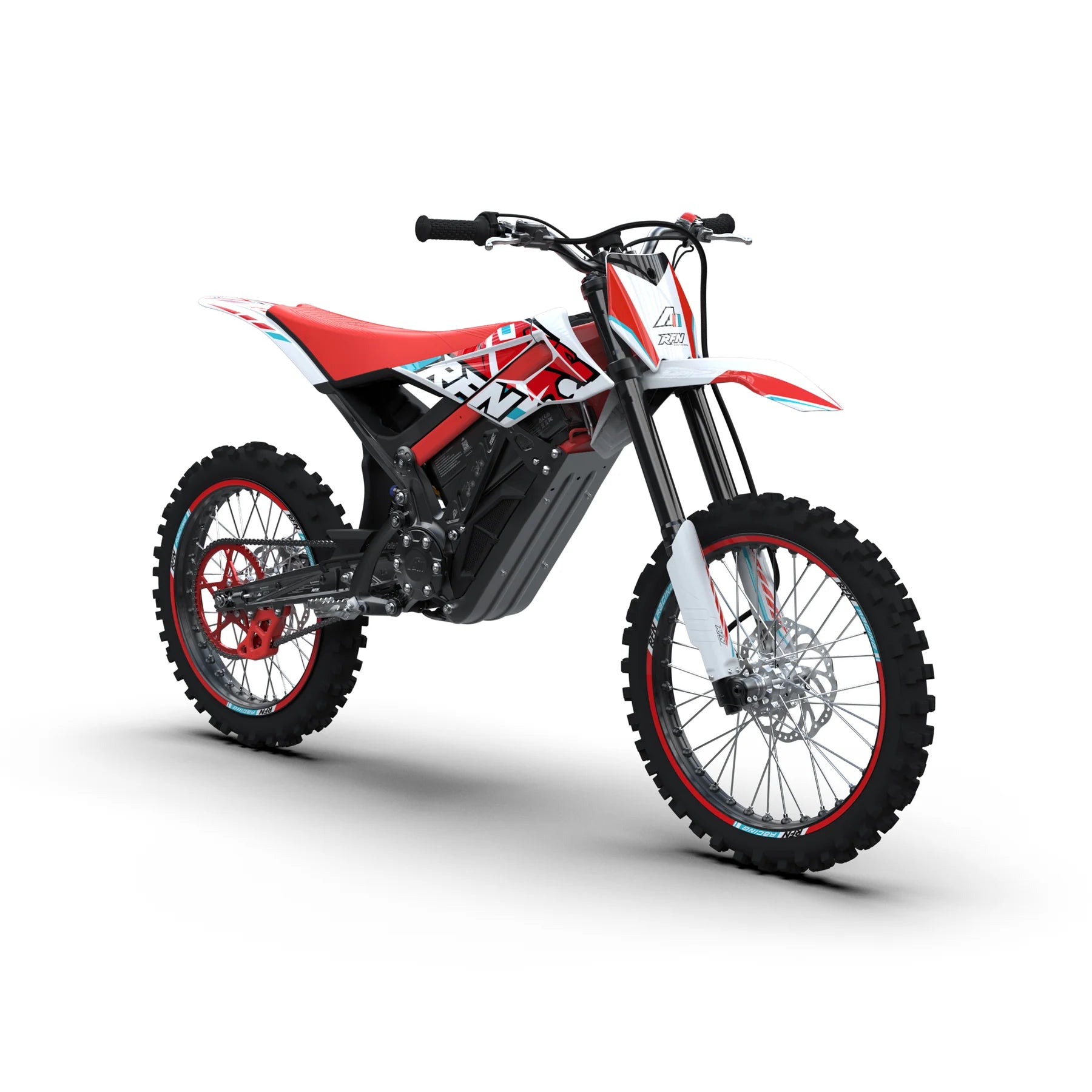

RFN ARES RALLY Electric Dirt Bike

RFN ARES RALLY Electric Dirt Bike

$6,990.00 AUD
$7,990.00 AUD $6,990.00 AUD
Sale Sold out
Taxes included.
Color

GERMAN DESIGN-AWARDS WINNER!

Taking the spotlight and receiving an award at the 2023 German Design awards, the RFN ARES RALLY Electric Dirt Bike. Test ride today and see for yourself why this bike is revolutionizing the industry.

MODEL OVERVIEW

Unleash Your Thrill-Seeking Spirit with the RFN Rally Electric Motorbike!

Elevate your adventure game with the awe-inspiring RFN ARES RALLY electric motorcycle, the crown jewel of the RFN ARES MX series. Get ready to redefine your limits and embrace the rush of electrifying power beneath you.

Prepare to be captivated by the earth-shattering 5kw motor with a peak 12kw output that propels you to heart-pounding speeds of up to 80km/h. Need for speed? You've found it. Accelerate from 0 to 50km/h in a mere 3.2 seconds, leaving ordinary bikes in your dust.

But it's not just about velocity – it's about conquering every terrain with mastery. The RFN Rally Pro features fully adjustable front forks with a staggering 200mm travel, ensuring you effortlessly navigate through rugged landscapes and demanding trails. The 18/19" motorcycle grade wheels offer superior grip and control, setting the stage for a ride that's both dynamic and commanding.

Let's talk range – no more boundaries holding you back. Our premium 74V, 2,590Wh LG 35AH Battery features the best 21700 cells and is your ticket to extended escapades. Fuel your hunger for exploration as you push the boundaries of distance and embark on journeys that echo with exhilaration.

But here's where the adrenaline truly kicks in: the removable seat. Designed for the fearless and the bold, this feature beckons trials riders to grasp the handlebars and seize the challenge. Every leap, every curve, every twist – a symphony of daring maneuvers that resonate with the call of the wild.

So, dear adventurer, embrace the unknown, chase the horizon, and shatter limits aboard the RFN ARES RALLY MX Electric Dirt Bike. It's not just a ride; it's a dare to embrace your most daring self.

SPEED & RANGE

  • Range 80km (Cruising at 40km/h on flat paved road)
  • Top Speed 80km/h

BATTERY

  • 74V / 2,590Wh, 35AH LG Premium lithium cells. Battery is also removable and can be charged in bike or separately.

RIDE MODES

  • Mode 1 Tortoise mode: The ultimate mode energy conservation exploration. Limited to 25 km/h with 3.5hrs battery range.
  • Mode 2 Rabbit mode: Enduro or active trail riding. 1-2 h riding time.
  • Mode 3 Rocket mode: Ultimate 60s Burst of Power. Track and race mode, maximum torque and speed, riding time up to 1h.
  • Mode 4 Reverse mode: Limited to 9 km/h.

FEATURES

  • Hill Ability Up to 80% Inclines
  • Seat Removable to convert bike into Trials Bike
  • Warranty 1 Year

BRAKES

  • Front and Rear 4-piston hydraulic disc, 210mm

  • EABS Electric Regenerative Braking

CHARGING

  • 2-3h with Fast Charging Functionality

DISPLAY

  • LCD Multi-Function (ODO, Trip, Battery Level, Speed etc)

CONTROLLER

  • 150A Sine wave, Best-in-class power density and state-of-the-art motor control algorithms.

DRIVETRAIN

  • Electric Motor Air cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420 chain with DXS
  • Sprocket 13-58T Standard (Optional 11-58T Available)
  • Rated Power 5 kW
  • Peak Power 12 kW
  • Max Torque of Motor 58 N·m
  • Max Torque of Rear Wheel 270 N.m or 305 N·m with Optional 11-58T Sprocket

    CONSTRUCTION

    • Frame 6082 aluminium extruded, forged, CNC machined and steel frame
    • Handlebars 6061 aluminium, 760mm length

    SUSPENSION

    • Front Upside Down Fork, 200mm travel, Fully adjustable
    • Rear Mono-Shock, 74mm travel, adjustable

    WHEELS & TYRES

    • Hubs Forged and CNC aluminium RFN hubs with 20mm axle.
    • Rims F 19"/ R 18" (Motorcycle standard) re-inforced, triple chamber, 7050 aluminium.
    • Tyres F: CST CM721 70/100-19 off-road,
    • Tyres R: CST CM722 90/100-18 off-road

    DIMENSIONS

    • Fork Angle 340mm - 13.39''
    • Offset 15mm in triple clamps, 45mm in forks.
    • Seat Height 860mm - 33.86''
    • Overall 1,937 x 770 x 1,080 mm
    • Ground Clearance 340 mm
    • Trail 111mm - 4.37''
    • Wheel Base 1,330mm - 52.36''

    WEIGHTS

    • N.W of Battery 15 kg
    • N.W of Complete Bike 68 kg
    • Max Loading 120 kg

    SECURE YOUR'S TODAY - IN STOCK NOW! ⚡️

    Shipping

    • Free Shipping On E-Bikes Australia Wide
    • Free Assembly With In-Store Pick Ups (Noosa)

    Call Our Team

    Want to speak with one of our team members?

    Call 1300 115 779

    View full details

    FAQ's

    How Do I Place An Order?

    Order securely via our website’s checkout system. Alternatively you can contact us if you need any assistance or prefer to place your order over the phone.

    How Difficult Is The Assembly?

    Our range of e-bikes are 85-95% pre-assembled. Follow the clear instructions to complete the process with ease.

    If you need help, reach out via any of our contact channels.

    Alternatively, if you purchase your e-bike through our website and pick it up in store, we will assemble your new e-bike for FREE.

    What Are The Australian E-Bike Laws?

    Visit your local state government website for latest e-bike laws. Generally, motor power must not exceed 250W, and the max pedal assist speed must be 25 km/h.

    When it comes to road legal eBike laws in Australia, it is important to note that you should always check your local laws for the latest rules and regulations. However, there are some general guidelines that apply across the country (at the time of this writing):

    • A road legal eBike typically must have a maximum motor continuous power of 250W. However, in New South Wales (NSW), the maximum power allowed is 500W.
    • The maximum pedal assist speed for a road legal eBike is 25 km/h.
    • If the eBike is equipped with a throttle, it must be locked to a maximum speed of 6 km/h. This means the throttle can be used as a start aid to begin your ride and gain some momentum, but once you reach 6 km/h, you must start peddling and use the pedal assist mode.
    • In pedal assist mode, the motor provides assistance as you pedal. On higher pedal assist levels, you may find that you barely need to put force on the pedals, resulting in a similar riding experience to using an unlocked throttle.

    Is A Licence Required To Ride An E-Bike?

    No licence is needed if your e-bike complies with Australian road legality standards.

    Which Frame Type Is Best For Me, Step-over Or Step-through?

    When it comes to choosing a bike frame type, there are a few factors to consider. Step-over and step-through frames are the two main options, each with their own advantages and considerations.

    Step-over frames:

    Step-over frames are the traditional choice and are characterised by a top tube that runs from the handlebars to the seat post. It is believed that step-over frames are lighter and more rigid, making them ideal for riders who prioritise speed and performance.

    However, due to advancements in frame technology, many step-through frames are now just as light and provide comparable strength.

    Therefore, the advantages of step-over frames are no longer as significant as they once were.

    Step-through frames:

    Step-through frames, on the other hand, offer more practicality and ease of use. With a step-through frame, you can get on and off the bike without having to lift your leg over the top tube. This convenience is especially beneficial for riders who prioritise practicality over the aesthetics of the bike. Step-through frames are also better suited for shorter riders, as the top tube of a step-over frame may make it difficult for them to stand over it comfortably.

    If a bike is going to be shared among family members with different genders and heights, a step-through frame is recommended. Additionally, if you plan on carrying a surfboard on your bike, a step-through frame is better since you won't have to step over the frame and the surfboard rack each time you want to get on or off the bike.

    However, it's important to note that some customers prefer the look of a step-over bike. Furthermore, a top tube can be useful if you need to mount a child seat at the front or carry cargo, or if you want to attach various accessories to the frame.

    A few years ago, 70% of our customers preferred the step over frame and 30% preferred the step through frame. Now the trend has changed towards the step through frame, with 60% of our customers choosing it and 40% going with the step over frame.

    It's up to you to decide which frame type is best for your needs or looks more appealing to you. However, if you can't decide, we would suggest going with the step through frame.

    Battery Maintenance and Prolonging Life Tips?

    On average, batteries last 500-1000 recharge cycles or 2-4 years.

    Proper maintenance of your eBike battery is essential to ensure its longevity and optimal performance. By following these tips, you can prolong the life of your battery and enjoy a more reliable riding experience.

    1. Charge between 20% to 80%

    Keeping your eBike battery's charge level between 20% and 80% can help double its longevity. Avoid draining the battery completely or letting it sit at full charge for extended periods.

    2. Avoid Extreme Temperatures

    Extreme temperatures can negatively impact your eBike battery's performance and lifespan. Do not expose the battery to very cold or very hot temperatures, as this can cause permanent damage. Store the battery in a cool and dry place when not in use.

    3. Use the Original Charger

    Always use the original charger that came with your eBike.

    4. Avoid Overcharging

    Do not leave your eBike battery on charge for an extended period after it has reached full capacity. Overcharging can strain the battery cells and shorten their lifespan. Unplug the charger as soon as the battery is fully charged.

    By following these guidelines, you can optimize the performance and lifespan of your eBike battery, ensuring many enjoyable rides for years to come.
